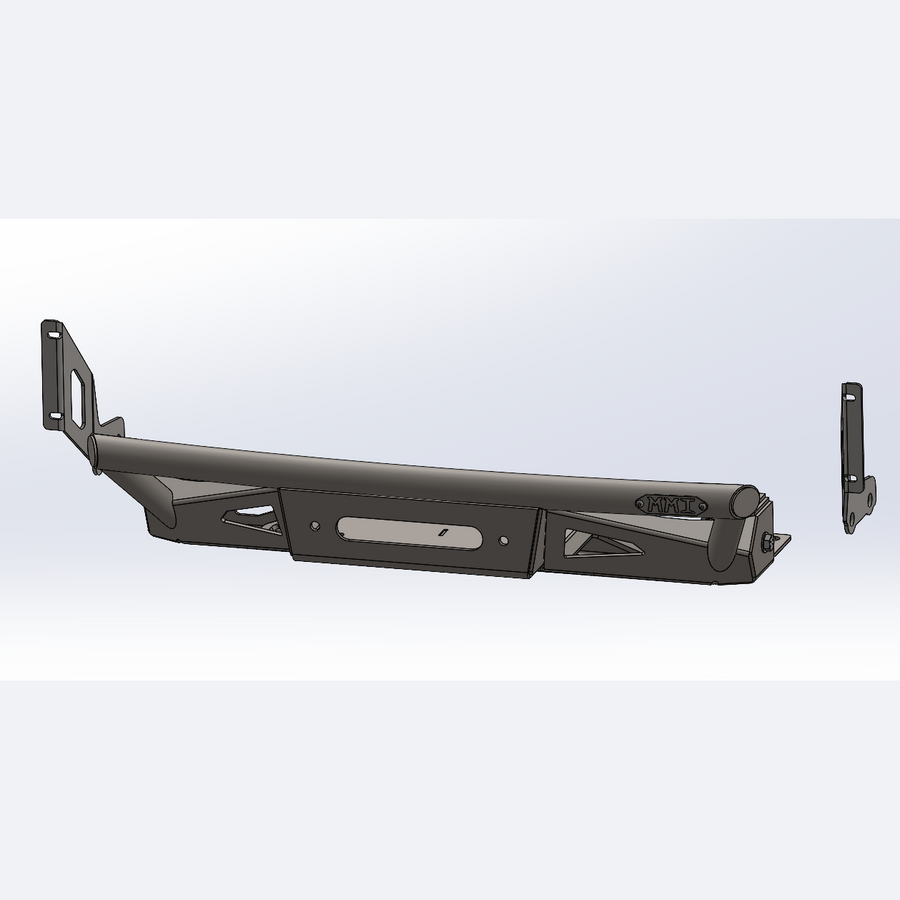

Low Pro Push Bar Bumper
This product isn't available for purchase yet. Join the waitlist and we'll notify you the moment it drops.
Notify Me When It DropsLooking for an over-built solution for mounting a winch to the front of your 3rd Gen 4Runner without losing the factory aesthetic? The Low Pro Push Bar Bumper fully boxes the factory frame for serious strength and winch-ready capability, while keeping the low-profile, OEM+ look that a bulky aftermarket bumper just can't match.
Every component is fabricated in-house at MMI in Orange, CA. The sheetmetal construction is laser-cut and CNC bent from HRPO mild steel, MIG welded into a single low-profile assembly. A DOM radius top tube, made from 1.75" x .120" wall tubing, is precision bent and mitered for a clean, seamless top rail. The bumper also ties into the two factory tow hook mounts on the bottom of the frame, adding an additional structural mounting point beyond the primary frame-boxing connection. A 3D-printed frame insert houses the crush sleeve at the primary mounting point and captures a flange nut for the secondary top-frame bolt — giving you a precise, repeatable mounting points.
Designed specifically for the 1996–2002 Toyota 4Runner (3rd Gen), using the factory chrome bumper from a 1996–1998 4Runner. Bolt-on extensions push the factory bumper forward to open up clearance for winches up to 9.5K, and may accommodate winches up to 12K with slight modifications. Some cutting and drilling is required during installation, so it's highly recommended this bumper be installed by a professional or someone with fabrication skills. MMI strongly recommends having mounting bolts checked after the first 100 miles of use.
Winch not included. Vehicles 99-02 must buy a steel bumper for years 96-98.
NOTE: This bumper ships in your choice of black powder coat or raw steel. Raw steel units will require a protective coating (paint, powder coat, or equivalent) before extended outdoor/off-road use to prevent surface corrosion.
What's Included
- Fully boxed frame assembly (bolt-on, MIG welded weldment)
- Bumper extension brackets (push factory bumper forward for winch clearance)
- 3D-printed frame insert with captured crush sleeve
- Mounting hardware kit (Grade 8 fasteners, locknuts, serrated flange nuts)
Key Features
- Fully boxes 3rd Gen 4Runner frame rails — OEM+ strength, no aftermarket flex
- Bolt-on bumper extensions — clears up to a 9.5K winch
- 3D Printed Frame Insert Captured crush sleeve and Nut Plate— clean, repeatable install
- CNC laser cut, CNC formed, MIG welded — fabricated in-house at MMI
- All the necessary Mounting Hardware
- Fits 1996–2002 Toyota 4Runner (3rd Gen) — direct bolt- 1996-02
- 96-98 factory steel bumper needed for install
Release of Liability: This product is sold for off-road use only. Installation and use are at the sole discretion and responsibility of the purchaser. Magallon Made Innovations (MMI) is not responsible for any damage, injury, or loss resulting from improper installation, misuse, or modification of this product. By purchasing, the buyer assumes full responsibility for safe and legal installation and use, and should ensure hardware is properly torqued and inspected regularly
