Installation Directions:
1. Remove Factory Sunroof Bezel:
Locate the
factory sunroof bezel attached to the headliner. Remove the single bolt
securing the bezel in place. Carefully slide the bezel to one side to
access the mounting points, then tilt it out to remove it from the
headliner.
2. Remove Sunroof Control from Sunroof Bezel:
Once
the bezel is separated from the headliner, locate the sunroof control
unit within the bezel. Disconnect all electrical connections associated
with the sunroof control unit, then remove the unit from the bezel.
3. Install Factory Sunroof Control into Top Plate:
Place
the factory sunroof control unit into the designated location on the
top plate of the switch mount. Utilize the factory hardware to secure
the sunroof control unit in place, ensuring a tight fit and proper
alignment.

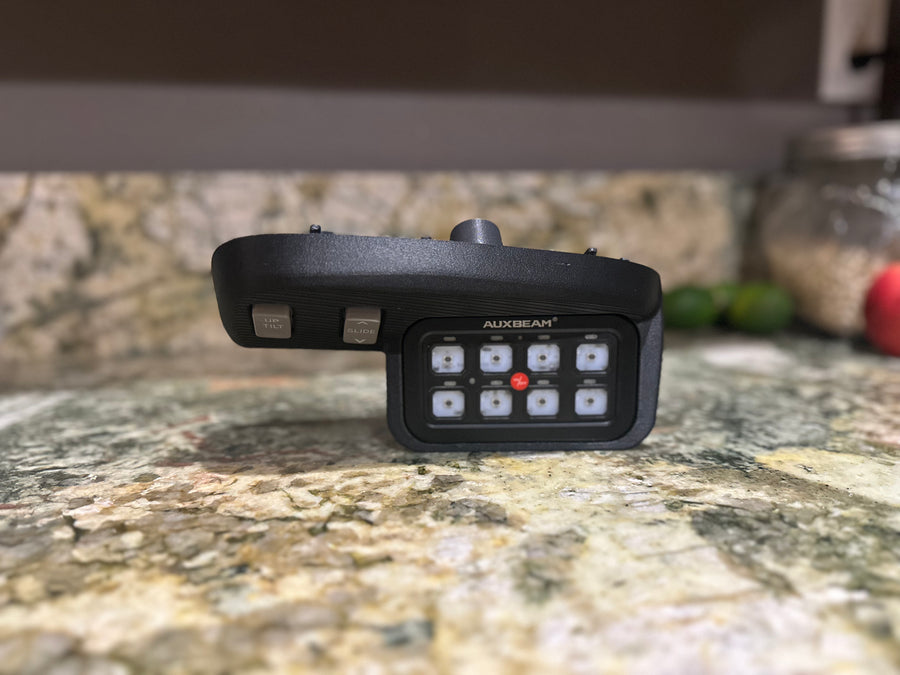

4. Install AuxBeam Controller into Top Plate:
Insert
the AuxBeam controller into the designated slot on the top plate of the
switch mount. Ensure that the controller is securely positioned and
aligns properly with the surrounding area.

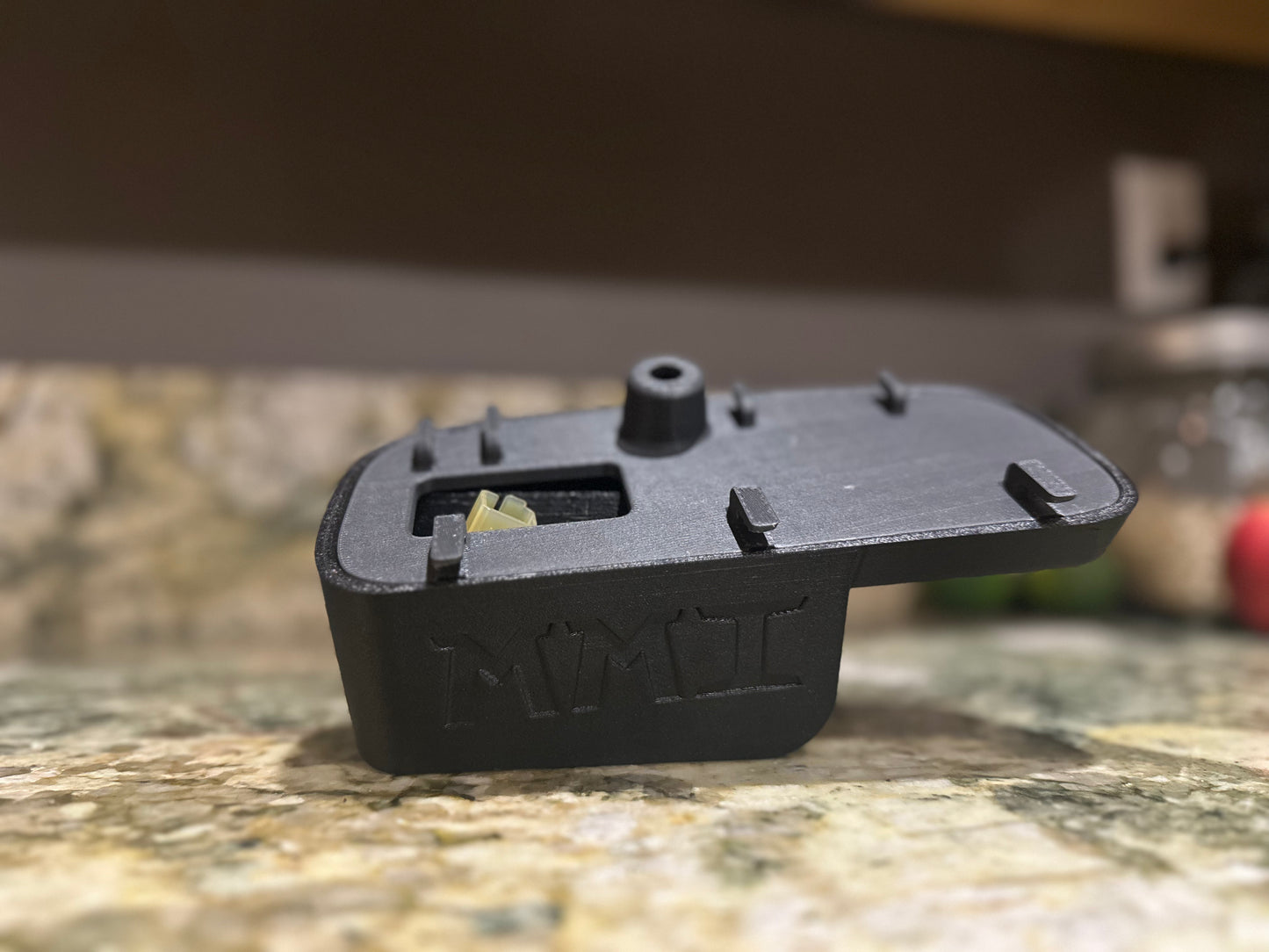

5. Slide the Base Plate into Position:
Tilt and
slide the base plate of the switch mount into the headliner and aligning
it with the factory mounting points. Use the factory hardware to secure
the base plate in place (check visor clearance before tightening),
ensuring a secure and stable installation.
6. Route AuxBeam Electrical and Reconnect Factory Connections:
Carefully
route the electrical wiring from the AuxBeam controller through the
designated channels in the switch mount. Reconnect any factory
electrical connections that were previously disconnected during the
installation process, ensuring all connections are secure and properly
seated.
7. Snap the Top Plate to the Bottom Plate:
Once
all components are properly installed and connected, snap the top plate
of the switch mount to the bottom plate to conceal the wiring and
provide a finished look.

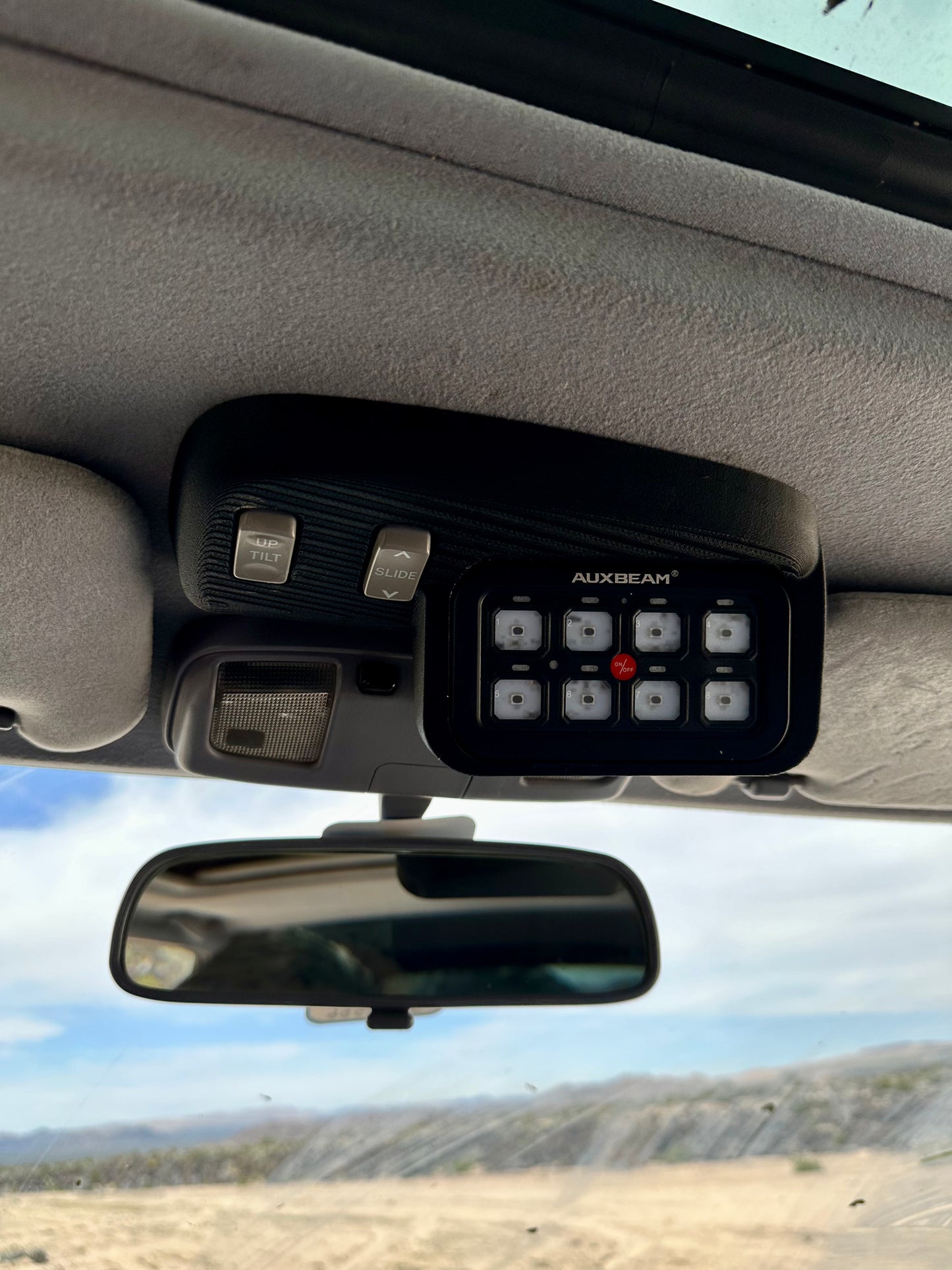

8. Enjoy:
With the switch mount securely
installed and all components properly connected, you are now ready to
enjoy enhanced control over your off-road accessories. Hit the road and
take your off-road adventures to the next level with ease and
convenience.
